The Honda CBR Fireblade air box & throttle body assembly.

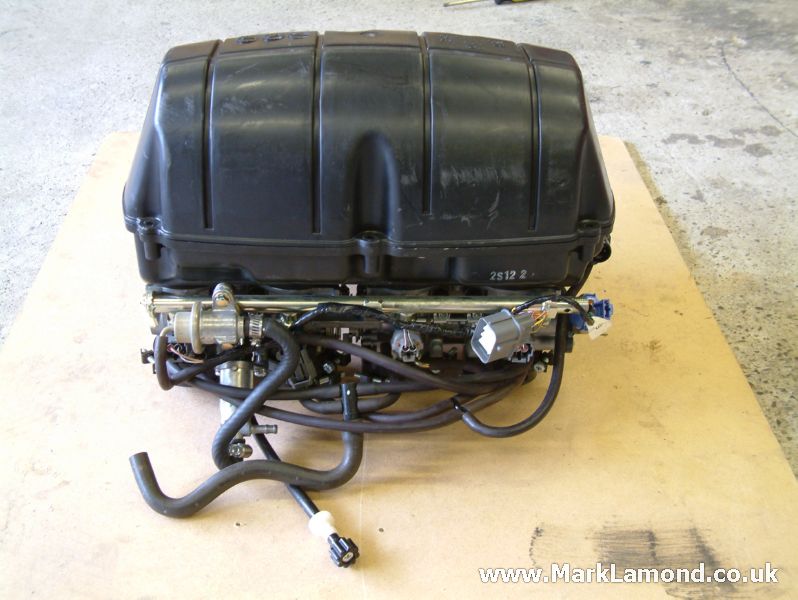

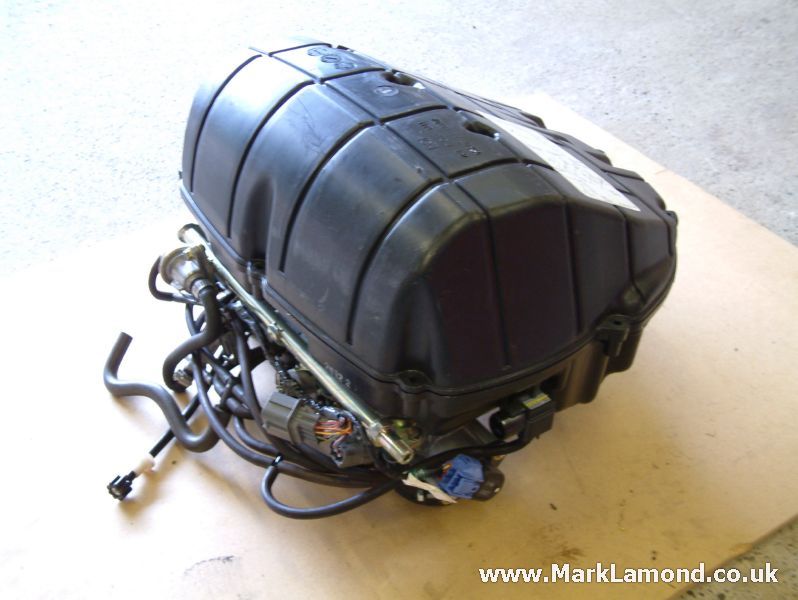

The air box as supplied to be from the bike breakers.
Cover and air filter removed, very impressive design and
build quality.
Notice that the right hand intake trumpet is chamfered.

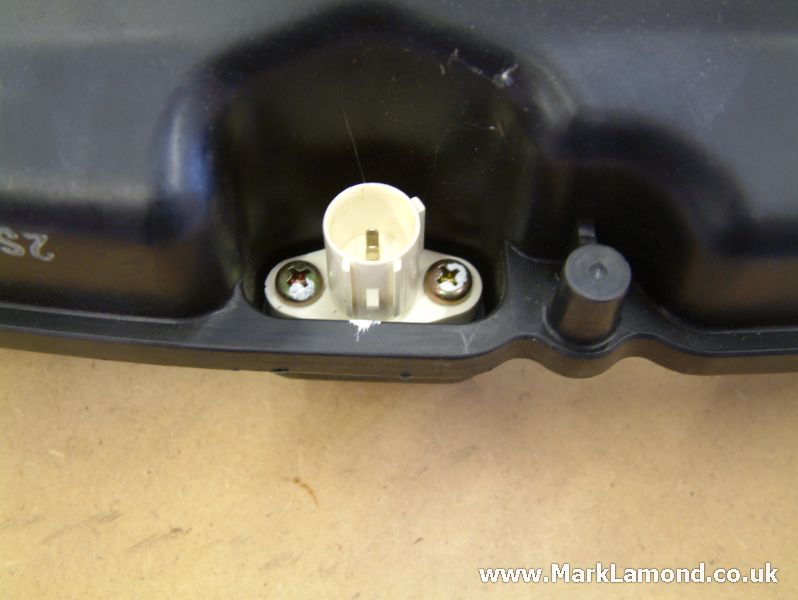

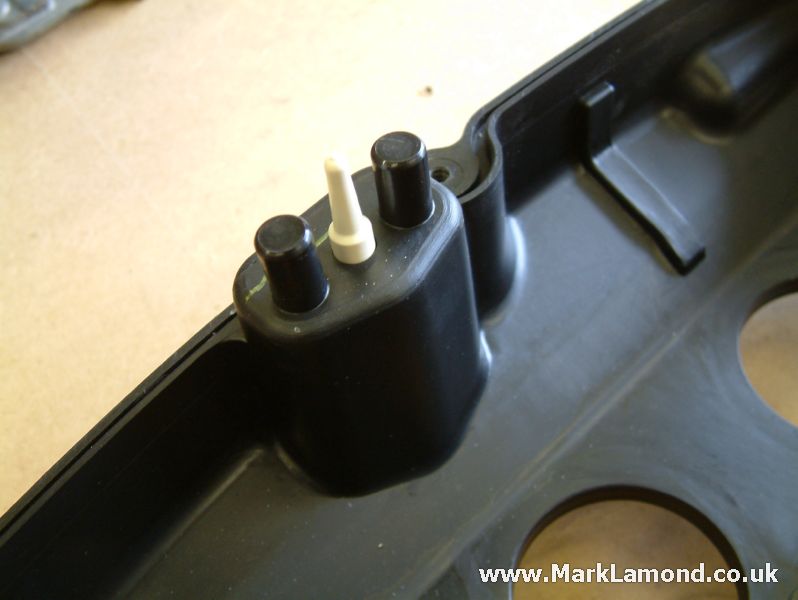

Air temperature sensor - remove and keep this as it is
the same sensor used on all Honda PGM-Fi systems.

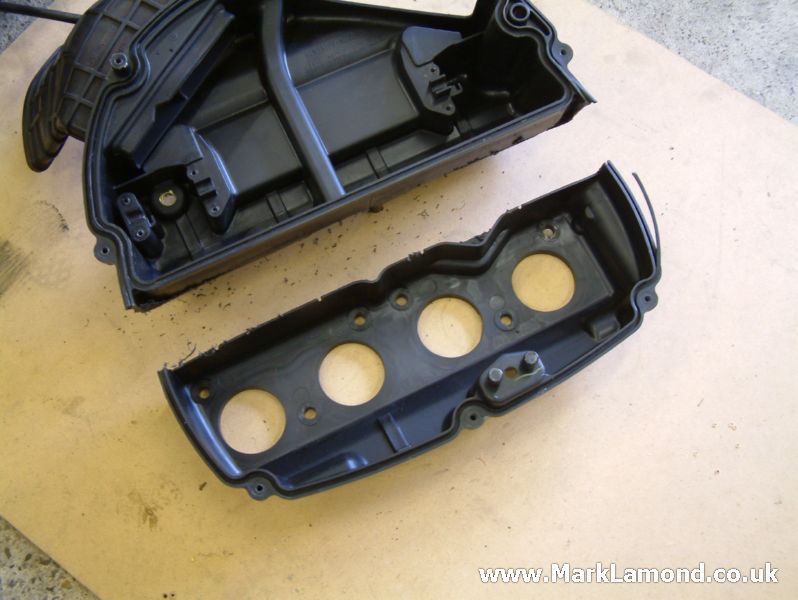

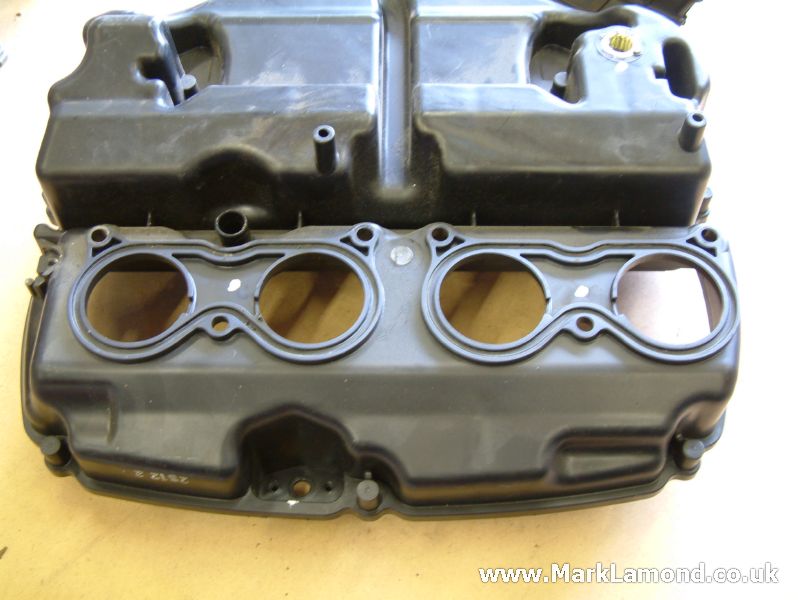

The only part we really need to keep from the air box is
the plate through which the air horns mount - roughly
cut this off as shown and discard the air box after
removing all useful screws, sensors etc. The bodies are
bolted to the air box through the horns, three screws on
each pair.
